Specs, UL&cUL

  We offer ASTM A135/A795 SCH 7,10,40 UL&cUL listed external galvanized/internal black hot-rolled steel fire sprinkler pipes in various sizes, including 1-1/2", 2", 3" and 4".

Strategic Advisory: To streamline site logistics and maximize hydraulic performance, we recommend consolidating 2-1/2" specifications into 3" modules. This reduces the variety of couplings and hangers needed on-site, further accelerating installation speed.

The 1-1/2 Inch Minimum Standard for Mission-Critical Performance.
​  We intentionally eliminate 1" and 1-1/4" piping from our ecosystem. By standardizing all terminal branch lines to a 1-1/2" minimum clean-interior module, we deliver two ultimate VE advantages: unparalleled hydraulic performance (drastically reduced friction loss) and radical site-installation simplicity. Combined with our zero-biofilm clean steel, it guarantees a high-flow, frictionless system that easily outperforms traditional small-diameter designs.

The 85% Hybrid Strategy: Zero-Premium MIC Protection Where It Matters Most.

  Why focus on 1-1/2" to 4" piping? Because in a high-stakes mission-critical build, these branch lines represent over 85% of your total system footage—and 100% of your highest leak risks.

  We've engineered a surgical approach to Fire Protection. By upgrading only the most vulnerable segments (1-1/2" - 4") to Josh Global's Clean-Interior Steel, GCs achieve total system integrity without a premium on the bottom line.

The Math of Value Engineering

- 🛡️ Targeted Protection for "Thin-Wall" Risks:

  While 6" mains are thick (Sch 40), the 1-1/2"-4" branch lines are thinner (Sch 10/7) and prone to stagnant "dead-ends" where MIC thrives. We eliminate the hydrocarbon food source exactly where the pipe is most vulnerable.

- 💰 T.I.C. Equilibrium (The Labor Offset):

  The 1-1/2"-4" segments are the most labor-intensive to install. Our 11' factory pre-grooved modules yield up to 30% field-assembly savings—a credit that completely pays for the upgrade to 100% Clean-Interior steel.

- 🔧 Nitrogen Efficiency Multiplier:

  Clean 1-1/2"-4" pathways ensure your 98% Nitrogen system reaches the furthest corners of the floor plan without being blocked by oil-sludge or biofilm, maximizing your corrosion-inhibition ROI.

  Stop Funding Low-Efficiency Fabrication. Start Specifying Sterile Standards.

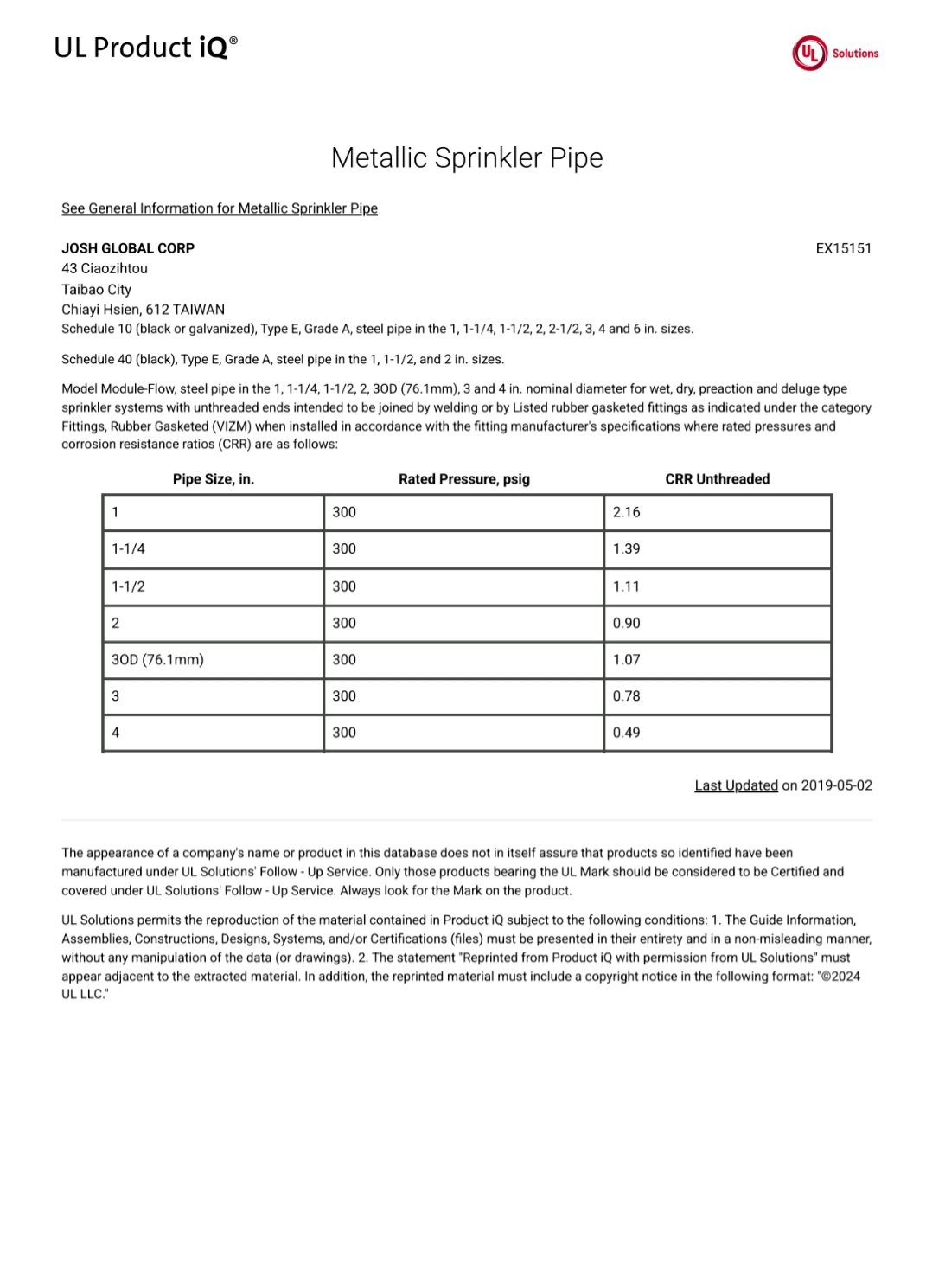

UL&cUL Listed: Yes (UL 852), EX15151. The following is UL document.

Engineering & Insurance Compliance Note: Navigating FM Standards

​ Our steel sprinkler piping is UL & cUL listed (UL 852) and engineered with a highly specific, dual-surface configuration: an externally galvanized surface paired with a 100% clean, non-galvanized bare-metal interior.

​ Because this advanced hybrid design is uniquely engineered to physically eradicate MIC, it currently falls outside the legacy testing scope of the standard FM Approvals program for basic steel pipe. This is a classification limitation, not a performance failure. For Mission-Critical facilities insured by FM Global, this system is strategically designed to be approved via Owner Variance. Here is why our UL/cUL listed piping remains the optimal, risk-averse specification:

Aligned with FM's Own Risk Data: Our design directly supports FM Global Property Loss Prevention Data Sheet 2-1, which strongly cautions against internally galvanized steel pipe in wet systems due to heightened corrosion risks. Our clean, non-galvanized interior perfectly answers this exact FM mandate.

Passive Component Acceptance: In the eyes of property insurance reviewers, steel piping acts as a passive structural component. As long as active equipment (like the Nitrogen generator) holds the required FM certifications, field engineers routinely accept our UL-listed, ASTM-compliant piping because it actively eliminates the massive financial risk of MIC leaks.

​The Comprehensive Acceptance Package: To empower underwriters to confidently approve the system, we provide a complete engineering package. This includes our UL/cUL listings, the Clean-Pipe Evidence Pack, and project-specific commissioning records (WPNI/DPNI). By explicitly aligning with FM Global Data Sheet 2-1, our system provides the exact verifiable data risk reviewers require—effectively eliminating the financial risk of MIC, and positioning the facility to safely secure and maintain its premium FM insurance coverage.

Ready to price a project? Visit Get a Quote.

Owner Variance Template: Upgrading to 15-Year MIC-Free Standard

Request for Specification Variance (RFSV)

To: [Insert Owner / Developer / Engineer of Record Name]

From: [Insert GC / Fire Protection Subcontractor Name]

Project: [Insert Mission-Critical Project Name]

Subject: Formal Request for Specification Variance – Fire Suppression Piping Material

1. Original Specification:

  The current project specification mandates the use of FM-Approved steel piping for the fire suppression system.

2. Proposed Alternative:

  We formally request a variance to utilize FireSprinklerPipe.com Modular Steel Piping, which is strictly UL/cUL Listed, in lieu of standard FM-Approved piping.

3. Justification for Variance (The Value Engineering & Risk Mitigation Proposition):

  While standard FM-Approved pipe meets baseline pressure and manufacturing tolerances, it does not address the leading cause of post-construction pipe failure in mission-critical facilities: Microbiologically Influenced Corrosion (MIC).

  Standard industry piping, regardless of FM approval, is commonly manufactured using wet-cutting processes that leave residual cutting fluids and mill scale inside the pipe. These organic residuals provide an immediate food source and biofilm foothold for MIC.

  By approving this variance to utilize the proposed UL/cUL Listed alternative, the Owner secures the following immediate upgrades to the facility's lifecycle integrity:

- 100% Clean-Interior Baseline: The proposed piping is manufactured using a proprietary dry-cutting process, delivering a sterile, bare-metal interior that physically denies MIC biofilm a foothold.

- Unprecedented Liability Shift (15-Year Warranty): Because the pipe interior is devoid of organic residuals, the manufacturer provides a 15-Year MIC-Free Manufacturer Warranty when paired with the standard nitrogen inerting system already specified for this project. Standard FM-Approved pipe typically carries only a standard 1-year material warranty.

- Code & Life Safety Compliance: The proposed material is fully UL and cUL Listed, strictly adhering to NFPA 13 standards for life safety and structural integrity.

- Zero-Premium T.I.C. (Total Installed Cost): The system utilizes factory pre-grooved 11-foot modules, enabling rapid on-site snap-grid assembly. The reduction in required field-fabrication labor completely offsets the cost of the premium clean-interior material, resulting in no added cost to the Owner's contract.

4. Conclusion & Recommendation:

  Relying solely on an FM stamp while accepting oily, MIC-prone pipe introduces unnecessary long-term risk to the data hall infrastructure. We strongly recommend accepting this variance to upgrade the system to a clean-interior standard, thereby securing a 15-year guarantee against corrosion leaks at no additional project cost.
